Frontschaufelanbaugeräte

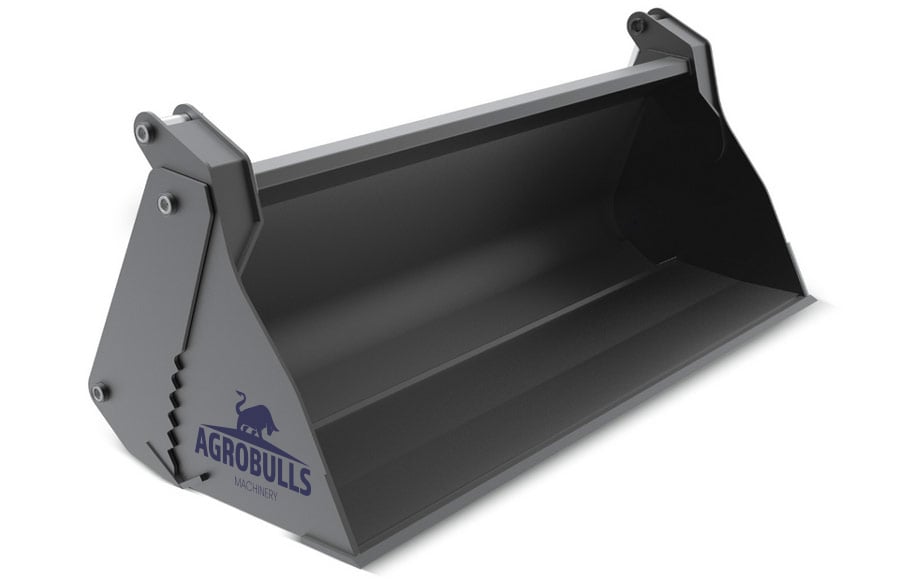

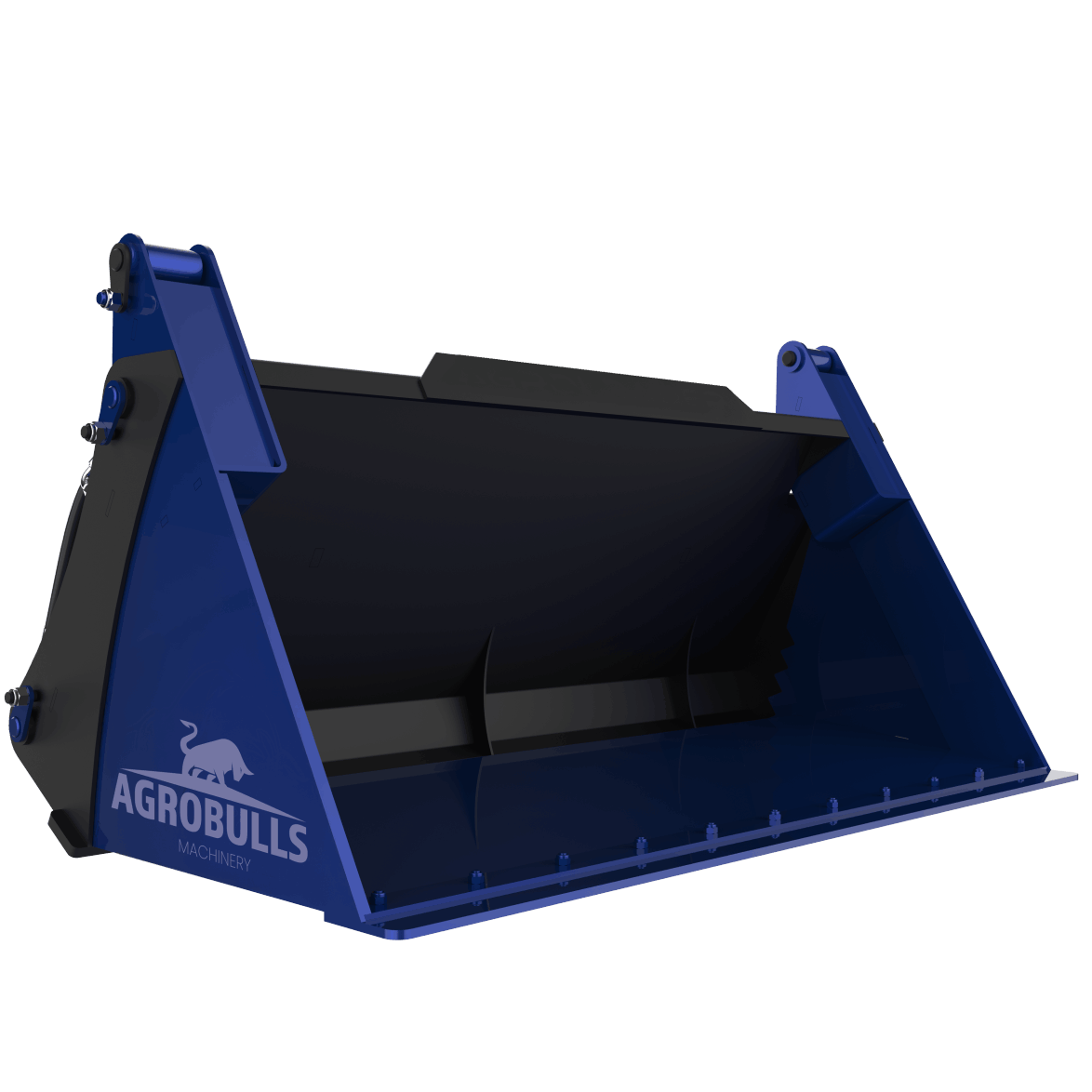

The Multifunctional Grain Bucket consists of 2 buckets that you can manage from the front and back of the vehicle. You can easily do all your agricultural work with very easy-to-use buckets.
It is designed by our company and manufactured from quality materials.
The Multifunctional Grain Bucket is mounted on tractors, construction equipment and other vehicles. It is an attachment type that can be used with front and rear loaders.
This design, supported by 6 mm ST52 platinum sheet and 10 mm ST60 MC blade, will serve you for many years.
It can be easily attached to your Mentor assistant buckets with disassembly and assembly.
With options starting from 350 Lt. volume.
It is 100% compatible with Mentor assistant buckets.

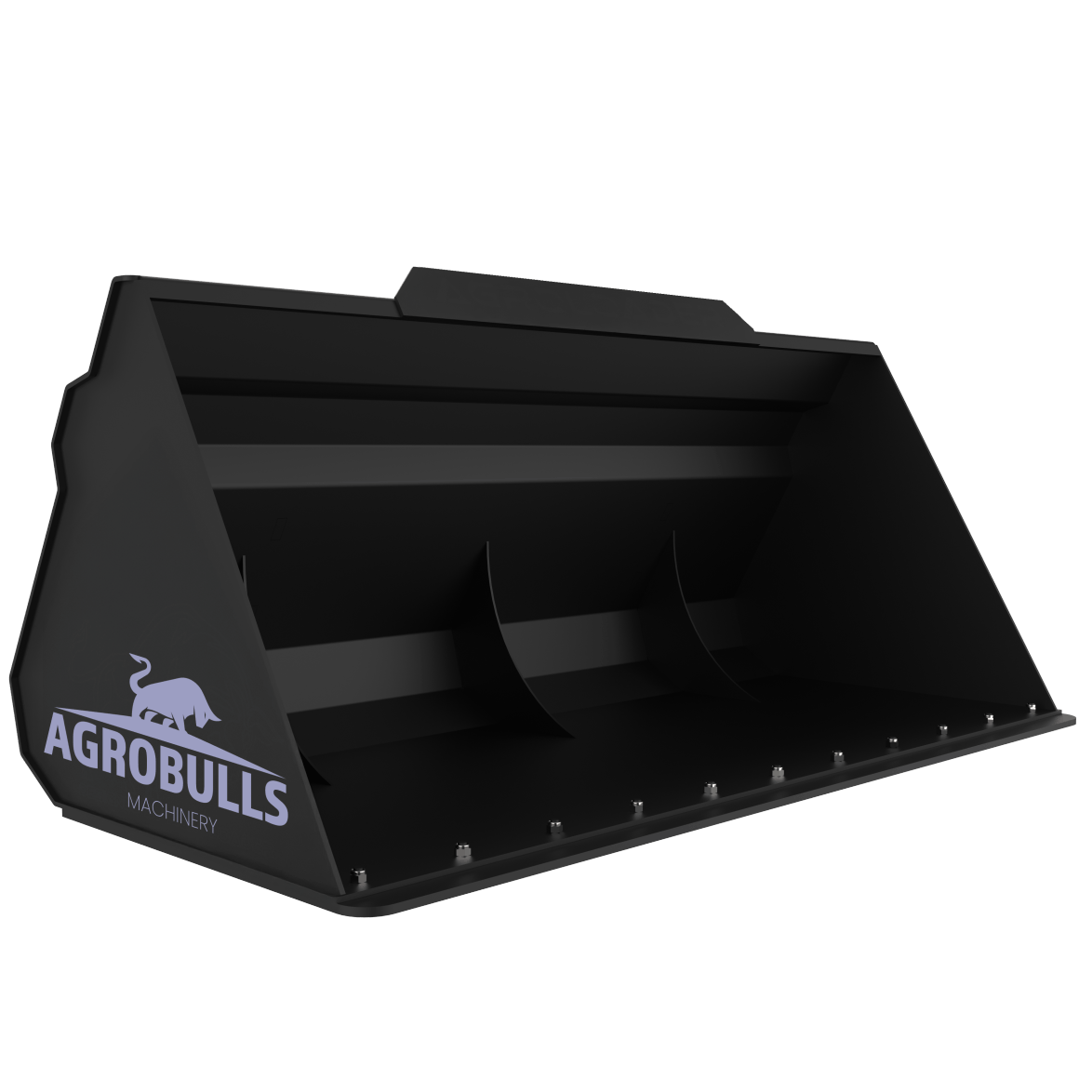

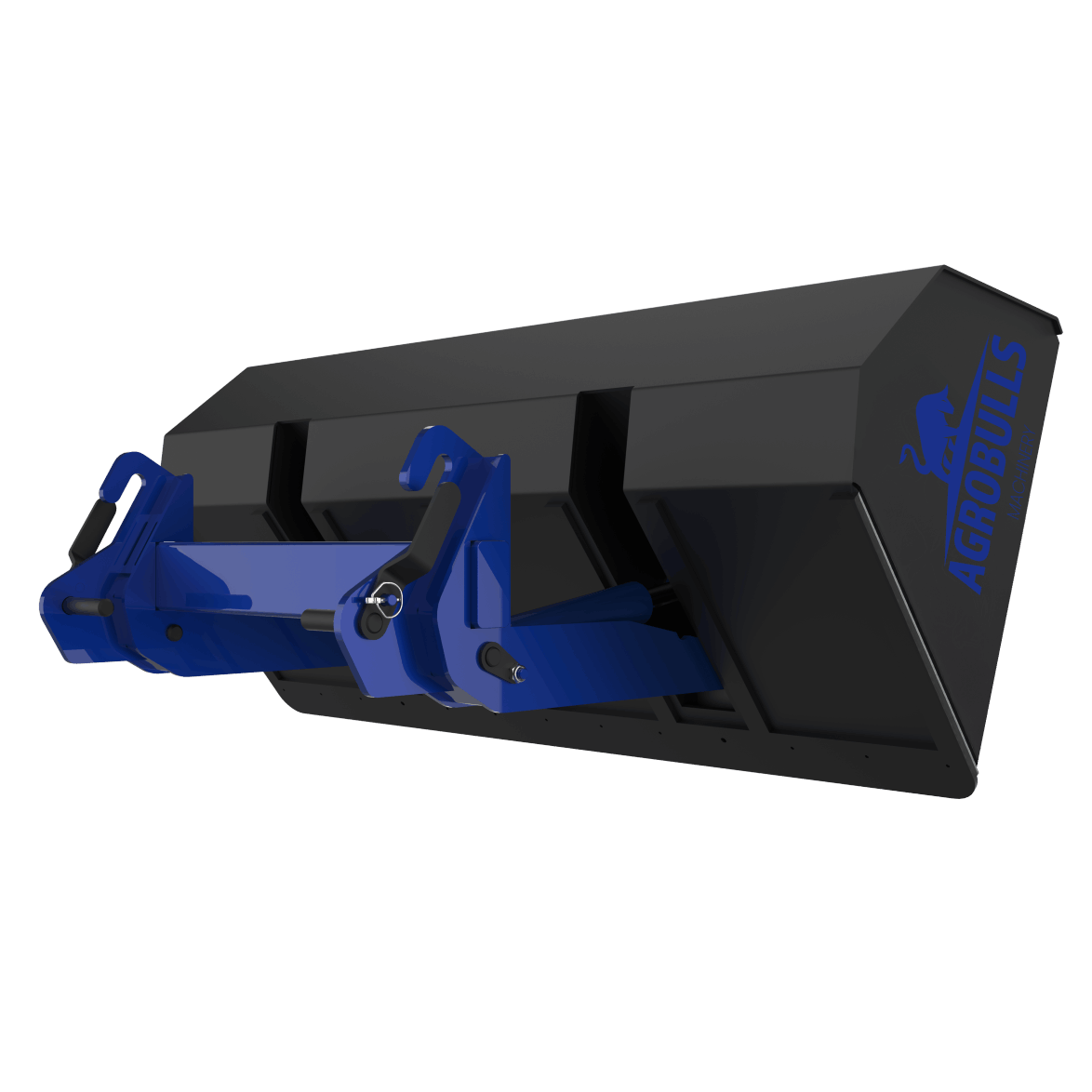

The Fixed Bucket consists of 1 bucket that you can manage from the front of the vehicle. You can easily do all your agricultural work with very easy-to-use buckets.
Designed by our company and manufactured from quality materials.
Fixed Bucket; It is mounted on tractors, construction equipment and other vehicles. It is a type of attachment that can be used with a front loader.
6 mm ST52 bucket plate and 10 mm S460MC blade for many years of trouble-free use
It can be easily attached to your Mentor assistant buckets with disassembly and assembly.
Possibility of direct discharge to the lifted height
It is 100% compatible with Mentor assistant buckets.

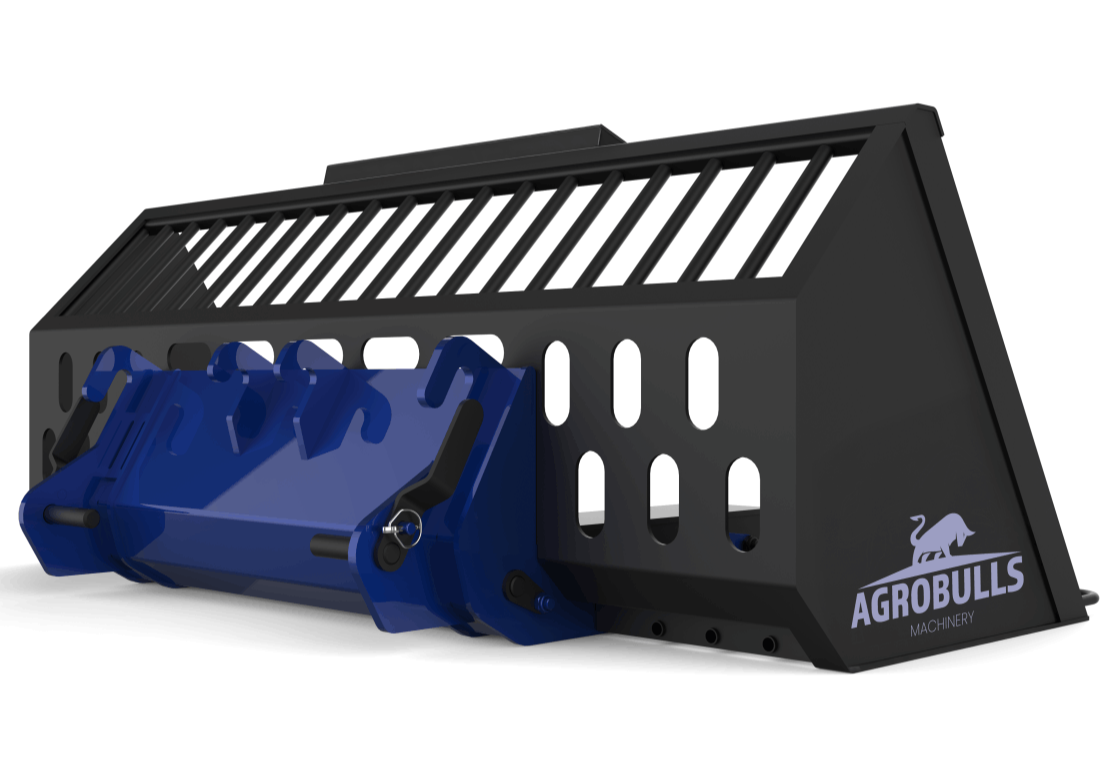

It is a piece of equipment that is mounted on a tractor and used to make sugar beet harvesting much easier. The beets collected from the field are loaded from the bucket to the trailer.
The beet bucket is used both to collect beets from the ground. It is also used to load the collected sugar beets onto the vehicle. It is mounted on the front of tractors, construction equipment and other vehicles.
Sugar beet buckets are especially marketed to many countries in the world.
MODEL TYA-1000
Carriage Weight ( Kg ) 1100
Beak Opening ( Kg ) 120
This design, supported by 6 mm ST52 platinum sheet and 10 mm ST60 MC blade, will serve you for many years.
It can be easily attached to your Mentor assistant buckets with disassembly and assembly.
It is 100% compatible with Mentor assistant buckets.

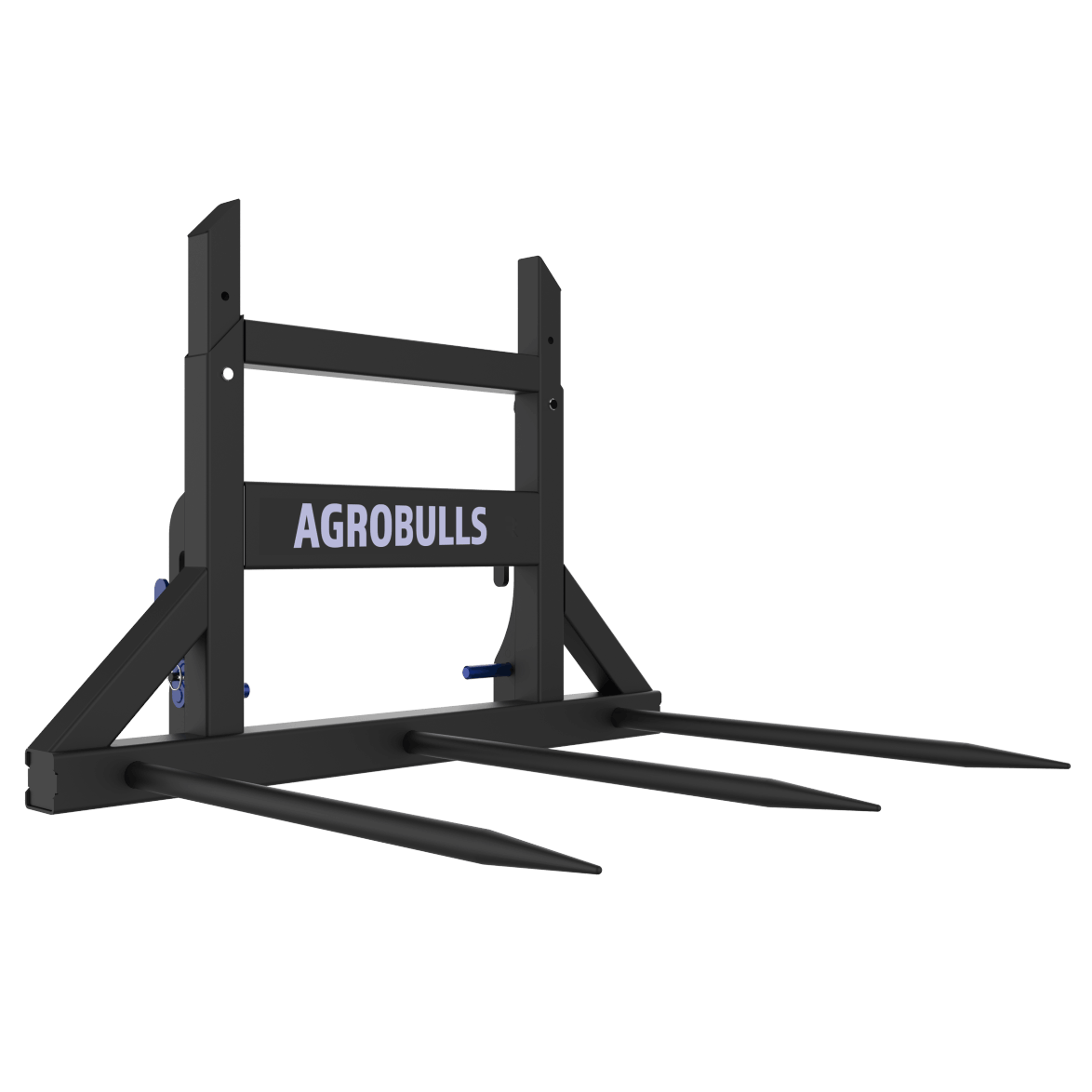

Used for Carrying and Stacking Prismatic Large Hay and Straw Bales. The large bale fork is designed for loading and carrying hay, haylage or similar materials. The load should be taken with two teeth at the same time.
During loading and carrying of stacked bales, the top bale should never protrude from the protective pipes that have been pulled out. Stacked bales should be held securely by the protective pipes, i.e. they should not be too narrow.
45 mm 1040 steel skewers carry even the heaviest loads without any problems
It can be easily attached to your Mentor assistant buckets with disassembly and assembly.
With its extended length structure, it does not take up space and works comfortably even in narrow spaces.
It is 100% compatible with Mentor assistant buckets.

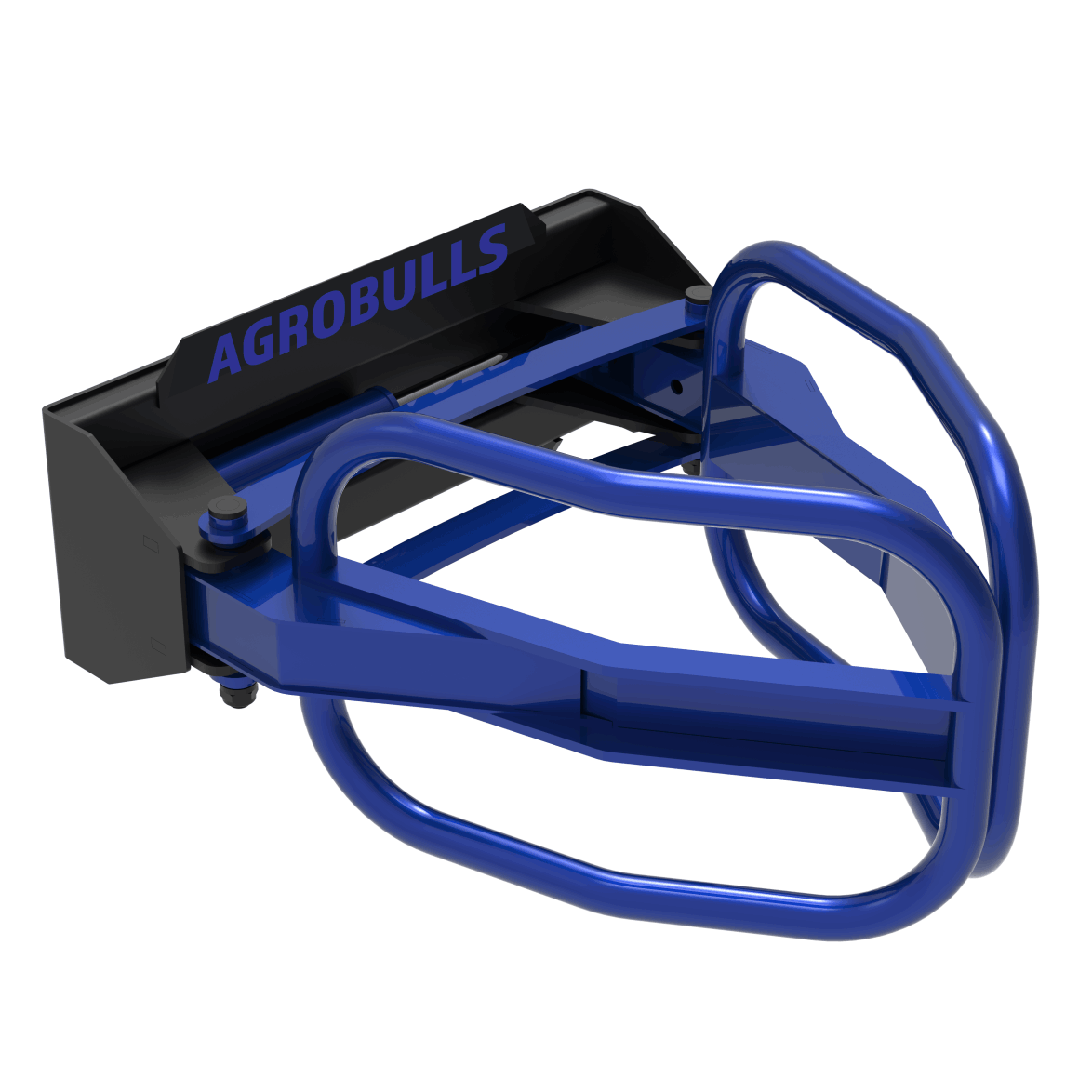

Bale grates; are used to hold and carry baled products. It can carry silage, grass, wheat, feed, straw, fertilizer, animal bedding and other materials and products very easily.
Bale Grapple grips baled products tightly. However, it never damages or harms the product. Thanks to its versatile use, it can easily hold flat or sideways materials. It also allows the transportation of round or square bales.
Bale grates; are mounted on tractors, construction equipment and other vehicles. It is a type of attachment that can be used with a front loader.
MODEL STA-1000
Bale Loading Weight ( Kg ) 1200
Product Weight ( Kg ) 220

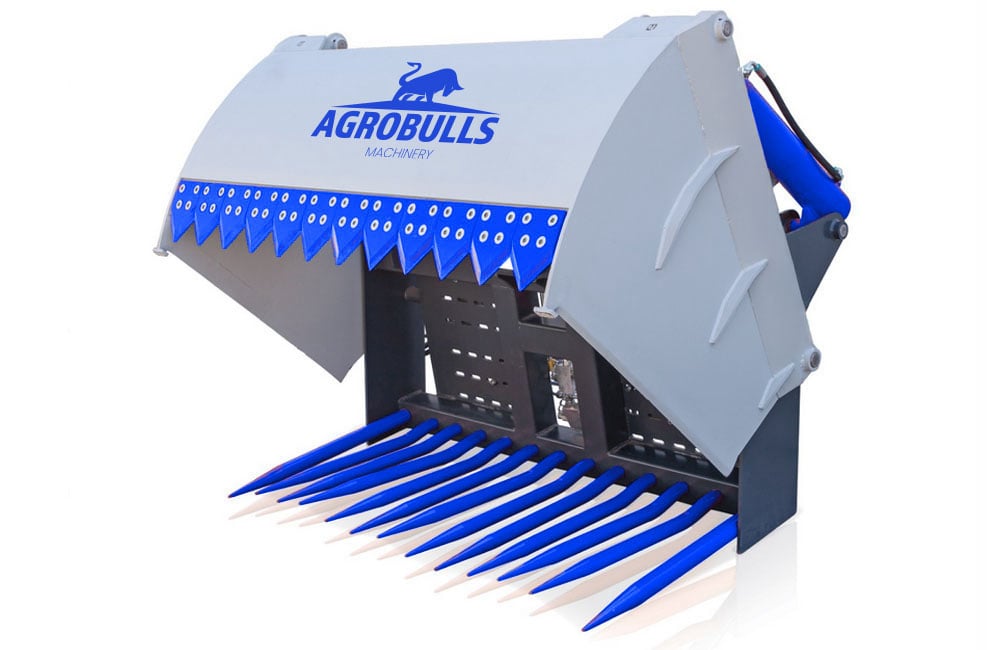

It easily collects silage, cuts it straight and smoothly. It is mounted in front of tractors, construction equipment and other vehicles. It allows easy harvesting. It is used for carrying, compressing and breaking bales without damaging them.
Create wonders with the Multifunctional “MKA Series” compact silage loading and cutting attachment, which is the first in Türkiye and which we are producing as a result of long R&D studies of “Turkish Engineers”. It is 100% domestic production. With its versatile, solid and strong structure, you can easily handle many of your jobs with a single attachment without using different attachments.
MODEL MKA-1600 MKA-2000 MKA-2400
Width ( m ) 1.70 2.10 2.50
Height ( m ) 1.52 1.52 1.52
Length ( m ) 0.90 0.90 0.90
Filling Volume ( m³ ) 0.85 1.50 2.50
Cylinders (4 Pieces) ( mm ) 100 100 100
Weight ( Kg ) 640 812 970
Number of Blades Pieces 8 10 12
Pressure Bar 210 210 210

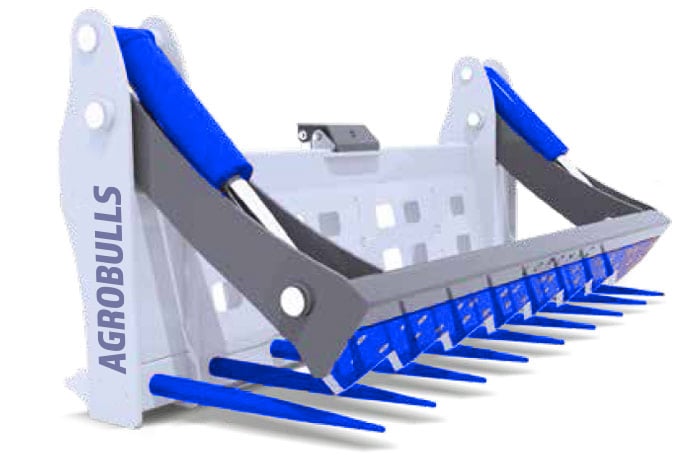

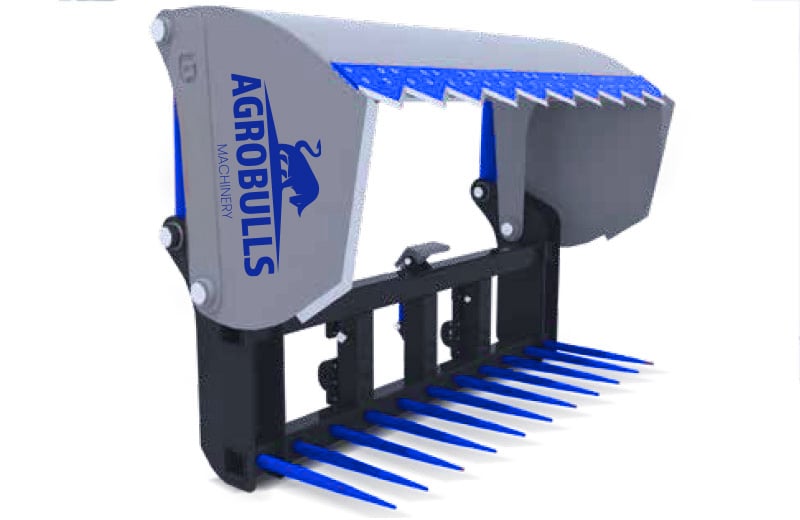

It is used to cut, carry and transfer silage. It cuts the silage in half. The lower part of the attachment acts as a holder and the upper part as a cutter. It cuts the bales smoothly. It is mounted on the front of tractors, construction equipment and other vehicles. It is a type of attachment that can be used with a front loader.
Create wonders with the Multifunctional compact silage loading and cutting attachment that we produce as a result of the long R&D studies of "Turkish Engineers", which is the first in Turkey. It is 100% domestic production. With its versatile, solid and strong structure, you can easily handle many of your jobs with a single attachment without using different attachments.
MODEL SKA-1000 SKA-1300 SKA-1600
Width ( mm) 1000 1300 1600
Cylinders (2 Pieces) ( mm) 90 90 90
Weight ( Kg ) 220 260 320
Number of Teeth Pieces 4 6 8
Teeth Diameter ( mm ) 40 40 40
It easily collects silage, cuts it straight and smoothly. It is mounted in front of tractors, construction equipment and other vehicles. It allows easy harvesting. It is used for carrying, compressing and breaking bales without damaging them.
Create wonders with the Multifunctional “MKA Series” compact silage loading and cutting attachment, which is the first in Türkiye and which we are producing as a result of long R&D studies of “Turkish Engineers”. It is 100% domestic production. With its versatile, solid and strong structure, you can easily handle many of your jobs with a single attachment without using different attachments.
MODEL TYA-1000
Carriage Weight ( Kg ) 1,100
Product Weight ( Kg ) 200
Beak Opening ( Kg ) 120

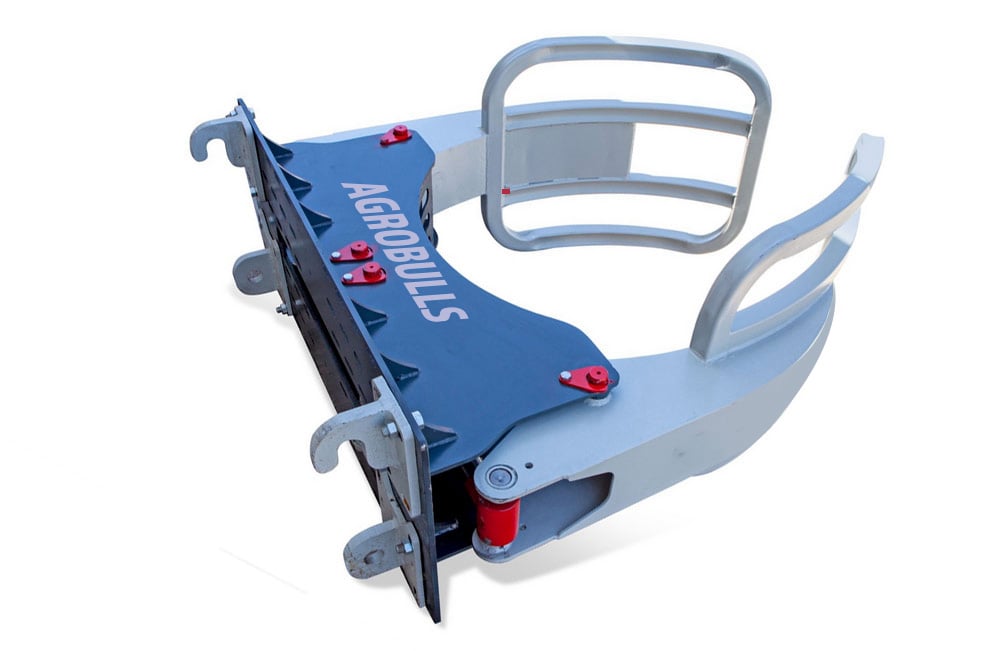

Bale grates; are used to hold and carry baled products. It can carry silage, grass, wheat, feed, straw, fertilizer, animal bedding and other materials and products very easily.
Bale Grapple grips baled products tightly. However, it never damages or harms the product. Thanks to its versatile use, it can easily hold flat or sideways materials. It also allows the transportation of round or square bales.
Bale grates; are mounted on tractors, construction equipment and other vehicles. It is a type of attachment that can be used with a front loader.
8 mm ST52 platinum chassis carries even the heaviest loads easily
It can be easily attached to your Mentor assistant buckets with disassembly and assembly.

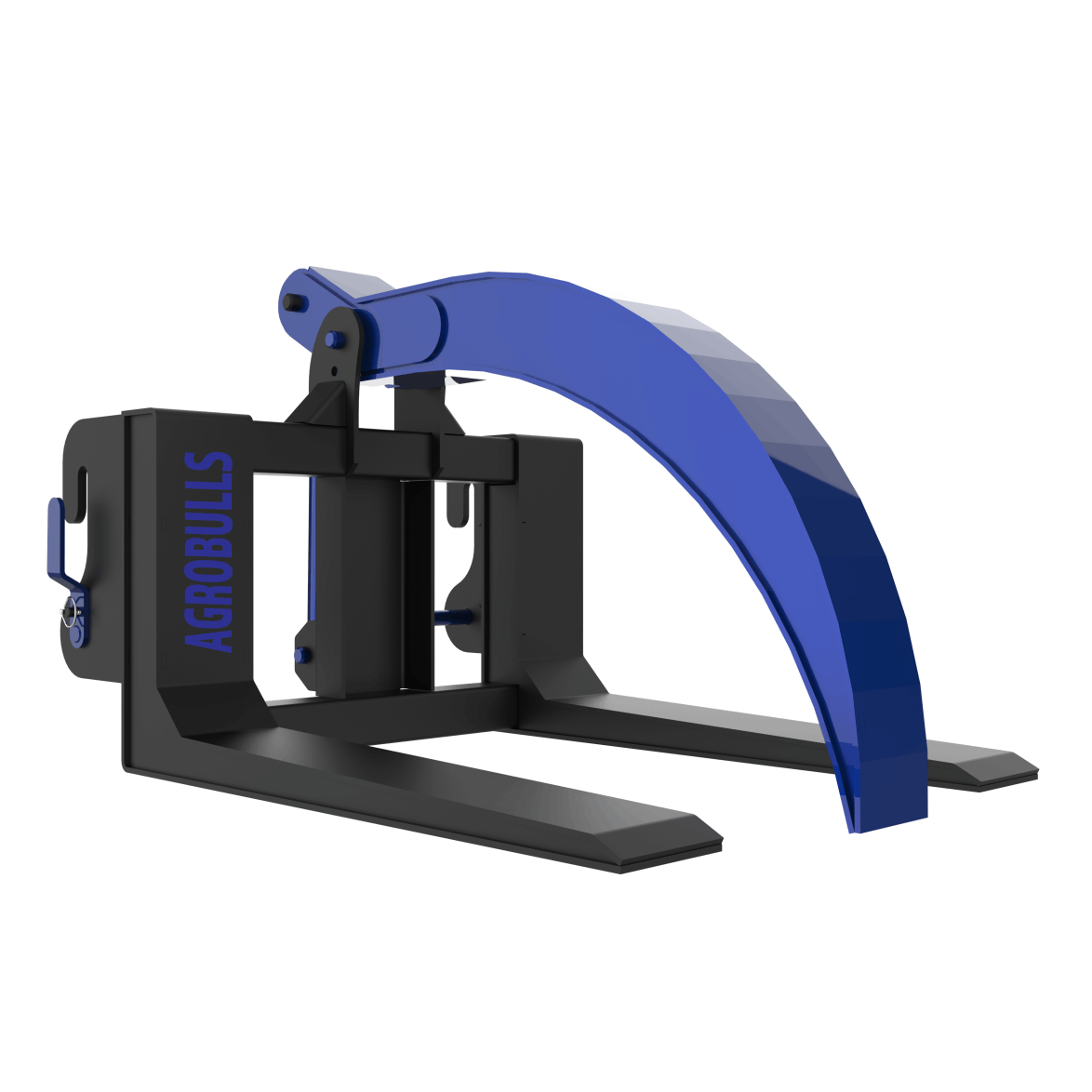

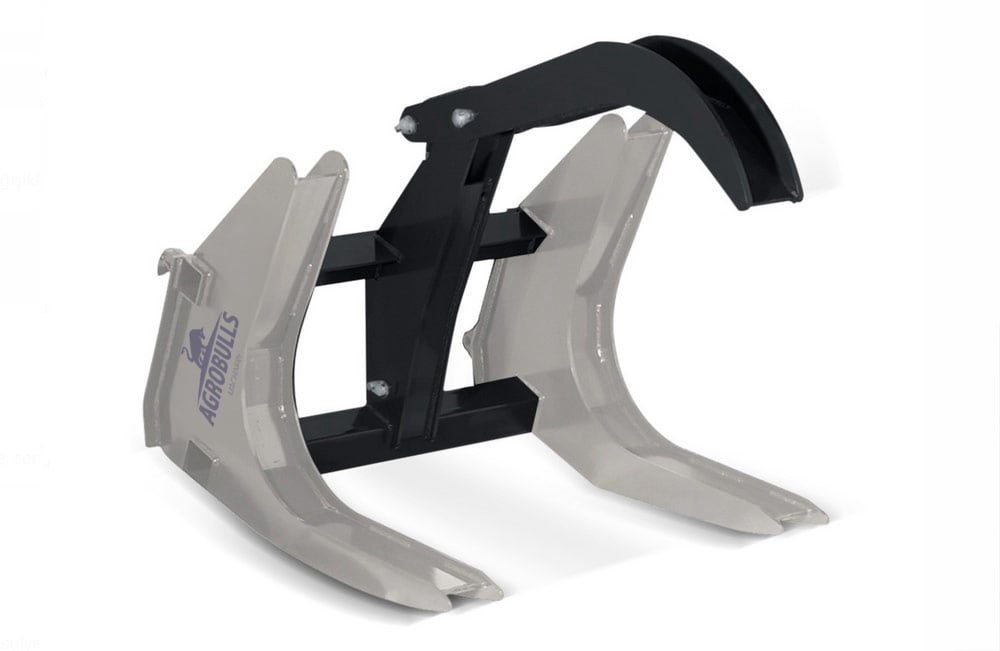

It easily grasps the logs with its powerful piston.
It is 100% compatible with Mentor assistant buckets.

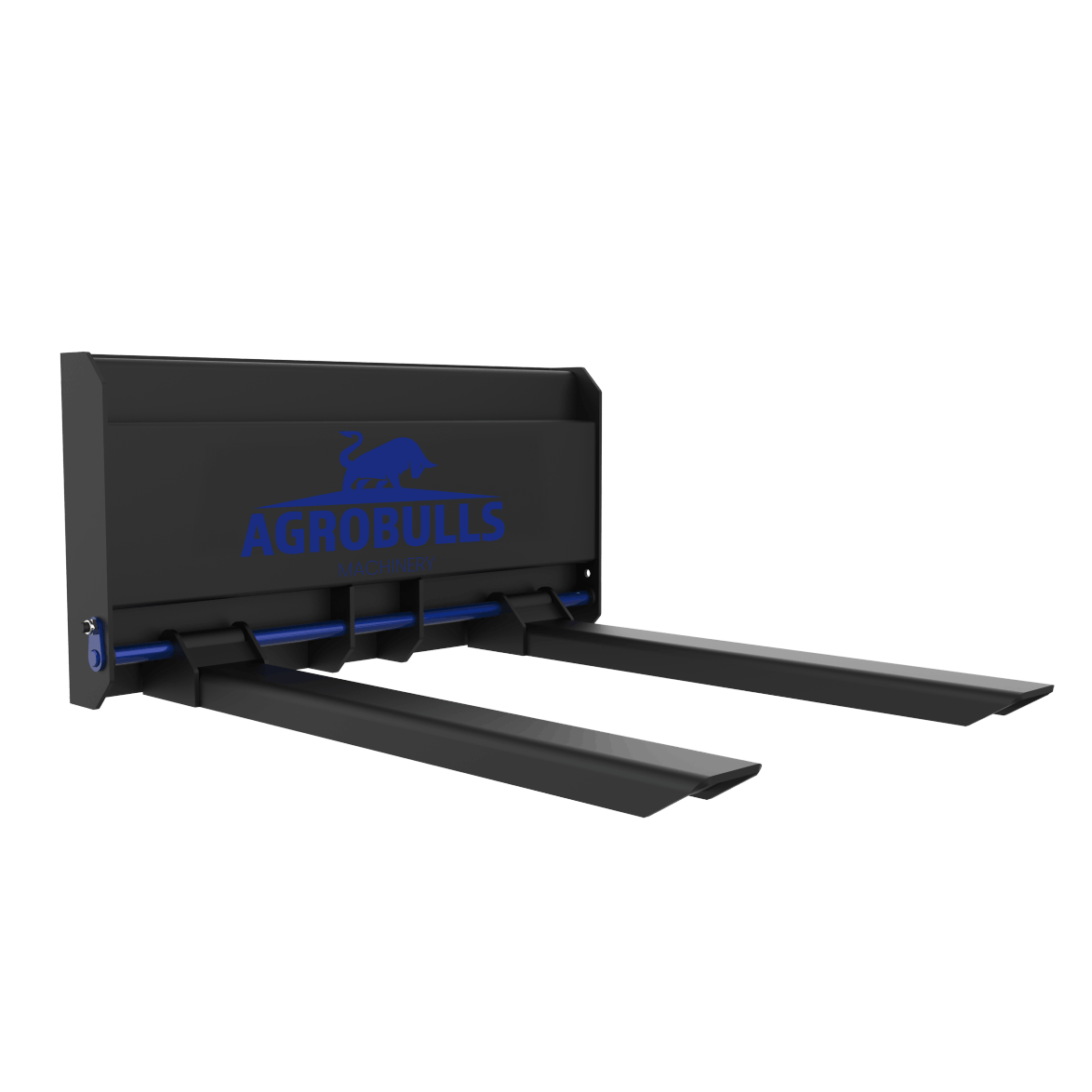

Forks made of 10 mm ST52 platinum can carry loads up to 1000 kg without any problems.
It can be easily attached to your Mentor assistant buckets with disassembly and assembly.
With its sliding structure, fork distances can be easily adjusted.
It is 100% compatible with Mentor assistant buckets.
8 mm ST52 platinum chassis carries even the heaviest loads easily
It can be easily attached to your Mentor assistant buckets with disassembly and assembly.
It easily grasps the logs with its powerful piston.
It is 100% compatible with Mentor assistant buckets.
MODEL 1600K 2000K 2400K
Width ( m ) 1.70 2.10 2.50
Height ( m ) 1.52 1.52 1.52
Length ( m ) 0.90 0.90 0.90
Filling Volume ( m³ ) 0.85 1.50 2.50
Cylinders (4 Pieces) ( mm ) 100 100 100
Weight ( Kg ) 640 812 970
Number of Blades Pieces 8 10 12
Pressure Bar 210 210 210
